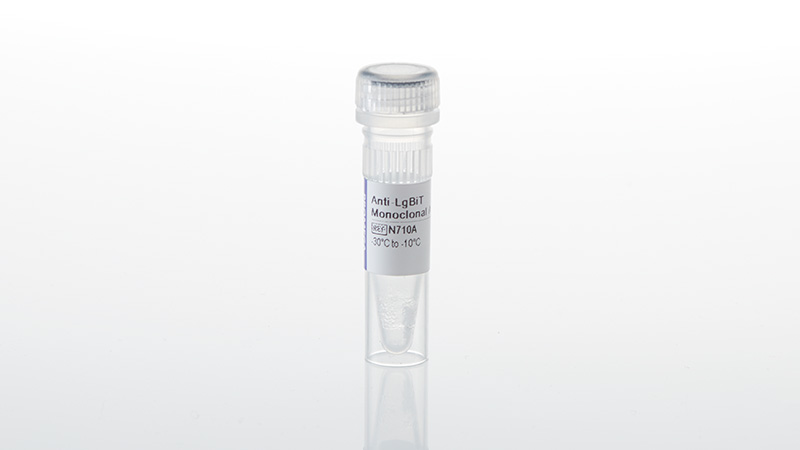

Anti-LgBiT Monoclonal Antibody

N7100_Anti-LgBiT-Monoclonal-Antibody_3
customize-this-small
View information on global supply logistics

Detects Large BiT (LgBiT) Subunit and LgBiT Fusion Proteins

  • Affinity-purified mouse monoclonal antibody
  • Use in Western blotting and immunofluorescence
  • Detects LgBiT subunit used in NanoBiT® complementation technology

Size

Catalog number selected: N7100

$ 398.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Anti-LgBiT Monoclonal Antibody
100μg
$ 398.00
Your price: Log in

Detect LgBiT Subunit of NanoBiT® Complementation System

Anti-LgBiT Monoclonal Antibody is a protein A/G affinity-purified mouse monoclonal antibody that is used to detect Large BiT (LgBiT) and LgBiT fusion proteins via Western blotting and immunofluorescence. Weak cross-reactivity with NanoLuc® luciferase is observed.

LgBiT is the large 18kDa subunit of NanoBiT® complementation technology. LgBiT interacts with the low-affinity SmBiT or the high-affinity HiBiT peptides to form a functional luciferase. LgBiT protein fusions are used with SmBiT protein fusions for live cell analysis of protein interactions. Unfused LgBiT can also be expressed in cells to detect HiBiT-tagged proteins without the need for cell lysis.

Western Blot Results

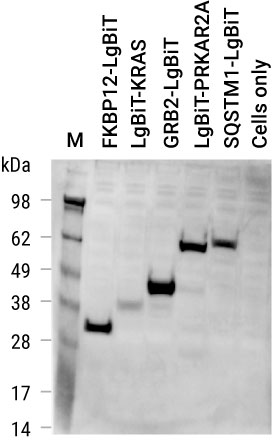

The figure on the right shows an example Western blot using HEK293 cells transfected with CMV-based expression constructs encoding LgBiT fusion proteins. The expected mobility was seen for each of the LgBiT fusion proteins. We recommend a concentration of 1µg/ml as a starting point for protocol optimization. Low levels of the LgBiT-KRAS fusion were detected even with CMV-driven expression and without dilution using Transfection Carrier DNA.

Detection of NanoLuc Luciferase on Western Blot with Anti-NanoLuc Antibody

Detection of NanoLuc® fusion proteins expressed in HEK293 cells.

Immunofluorescence Results
Shown below are example immunofluorescent images of HeLa cells transfected with a CMV-based construct expressing LgBiT-CRAF fusion protein. The LgBiT-CRAF fusion protein is stained red, and nuclei are marked blue via Hoechst staining. We recommend a concentration of 1-3µg/ml for immunofluorescence optimization. No LgBiT staining is observed in HeLa cells transfected with only carrier DNA (mock).

LgBiT-CRAF
(3µg/ml Anti-LgBiT)

LgBiT
16621-tascreen-07
Hoescht
16622ta-screen-08
Merge
16623ta-screen-09

Mock (3µg/ml Anti-LgBiT)

LgBiT
16618ta-screen-04
Hoescht
16616ta-screen-mock
Merge
16616ta-screen-mock

Specifications

What's in the box?

Item Part # Size

Anti-LgBiT Monoclonal Antibody

N710A 1 × 100μg

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions
