Maxwell® CSC Pathogen Total Nucleic Acid Kit

AS1860-Maxwell CSC Pathogen Total Nucleic Acid Kit
View information on global supply logistics
customize-this-small

Consistent and Reliable Automated Total Nucleic Acid Extraction for In Vitro Diagnostic Pathogen Testing​

  • Increases efficiency by simultaneous processing of a variety of sample types in the same extraction run​
  • Uses a single, easy-to-use, preprogrammed, automated method on Maxwell® CSC Instruments
  • Provides high-quality total nucleic acid for use in amplification-based in vitro diagnostic assays​
  • Manufactured under cGMP and compliant with relevant IVD medical device regulations, including Regulation (EU) 2017/746 on In Vitro Diagnostic Medical Devices (IVDR) and US IVD regulations

Size

Catalog number selected: AS1860

$ 445.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More

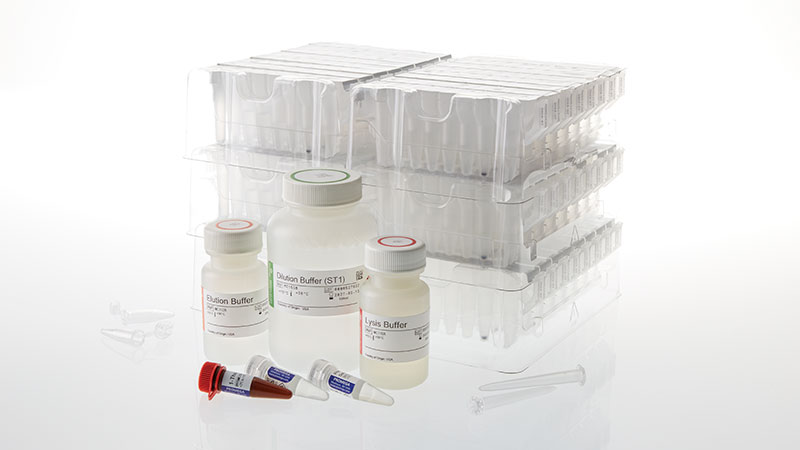

Maxwell® CSC Pathogen Total Nucleic Acid Kit
48 preps
$ 445.00
Your price: Log in


Simple and Efficient Total Nucleic Acid Extraction from a Broad Range of Sample Types for In Vitro Diagnostic Testing of Pathogens​

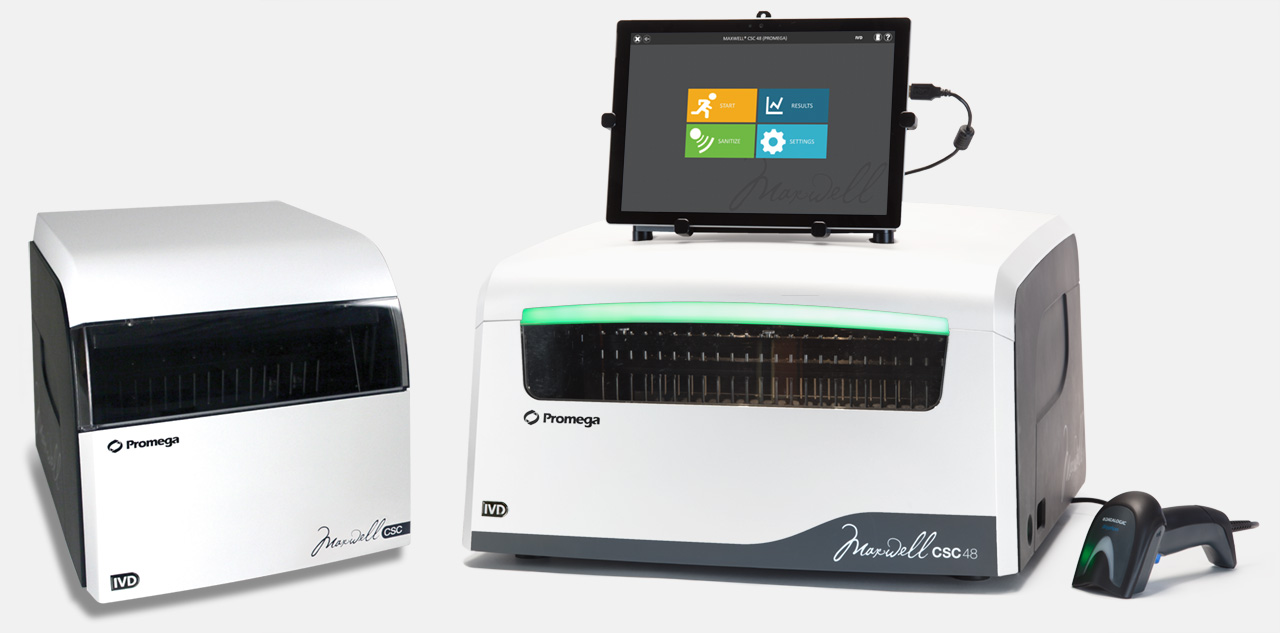

maxwell-csc

The Maxwell® CSC Pathogen Total Nucleic Acid Kit, used with the Maxwell® CSC Instruments, is designed for automated, benchtop extraction and purification of total nucleic acid from stool, sputum, bronchoalveolar lavage, plasma, urine, universal or viral transport media containing nasopharyngeal swabs, and Pap media containing cervical swabs. The extracted total nucleic acid is ready to use in a variety of amplification-based in vitro diagnostic assays to test for human pathogens like bacteria, viruses and parasites. The Maxwell® CSC Instrument can process up to 16 samples, and the Maxwell® CSC 48 Instrument can process up to 48 samples, in parallel with the simple touch of a button. The preprogrammed Pathogen Total Nucleic Acid method on the Maxwell® CSC Instruments enables extraction of total nucleic acid from different sample types simultaneously in a single extraction run, maximizing laboratory time and efficiency.

The Maxwell® CSC Pathogen Total Nucleic Acid Kit protocol involves three main steps:

  1. Prepare sample lysate using simple sample-specific protocols.
  2. Add the prepared sample lysate to the Maxwell® CSC Cartridge (CSCQ) and mix with the binding buffer already present in the first well.
  3. Load the prepared Maxwell® CSC Cartridge (CSCQ) on the Maxwell® CSC or Maxwell® CSC 48 Instrument for automated extraction of high-quality total nucleic acid in less than 40 minutes.

The Maxwell® CSC Pathogen Total Nucleic Acid Kit contains all the required reagents along with convenient, prefilled cartridges for total nucleic acid extraction from all the supported sample types. A range of sample input amounts can be used for extraction, and the 100µl elution volume results in concentrated total nucleic acid. The Maxwell® CSC Pathogen Total Nucleic Acid Kit offers clinical laboratories an easy-to-use platform solution with built-in flexibility for consistent and reliable total nucleic acid extraction from different sample types for a variety of in vitro diagnostic workflows such as PCR, qPCR and RT-qPCR assays.

Maxwell® CSC Pathogen Total Nucleic Acid Kit is currently available in Austria, Belgium, Canada, Croatia, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Korea, Latvia, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom and United States.

High-Performance Platform for Simultaneous Extraction of Total Nucleic Acid from Diverse Clinical Sample Types for Pathogen Testing​

sample-types-double-row

Sample-specific lysate preparation

Simultaneous Total Nucleic Acid Extraction in IVD mode of Maxwell® CSC Instruments

Schematic of sample addition and sample mixing in the Maxwell cartridge.
Schematic of particle capture and nucleic acid binding steps in the Maxwell DNA purification method.
Schematic of  washing and elution steps in the Maxwell DNA purification method.

Reliable Extraction of High-Quality, Ready-to-Use Total Nucleic Acid from Different Sample Types

A.
TNA Extraction from Clostridium difficile

B.
TNA Extraction from Giardia lambia

C.
TNA Extraction from Chlamydia pneumoniae

D.
TNA Extraction from Cytomegalovirus (CMV)

E.
TNA Extraction from Bordetella pertussis

F.
TNA Extraction from Herpes Simplex Virus-1

G.
TNA Extraction from Neisseria gonorrhoeae

H.
TNA Extraction from Trichomonas vaginalis

The Maxwell® CSC Pathogen Total Nucleic Acid Kit, used with the Maxwell® CSC Instruments, extracts total nucleic acid from a range of diverse sample types. The Maxwell® CSC Pathogen Total Nucleic Acid Kit works with a variety of sample types including stool (Panels A and B), sputum (Panel C), bronchoalveolar lavage (Panel C), plasma (Panel D), universal transport media (UTM; Panel E) or viral transport media (VTM; Panel F) containing nasopharyngeal swabs, Pap media containing cervical swabs (Panel G) and urine (Panel H). All sample types were spiked with known quantities of inactivated pathogens as indicated, and total nucleic acid was extracted from each specimen (n=8) using the Maxwell® CSC Pathogen Total Nucleic Acid Kit. Undiluted total nucleic acid extracted from each sample type and its tenfold dilution were used in a qPCR assay specific for the appropriate pathogen target. The extracted total nucleic acid shows no detectable inhibition in amplification-based assays for pathogen detection.


TNA Extraction from sputum on Maxwell CSC vs Maxwell CSC 48

The Maxwell® CSC Pathogen Total Nucleic Acid Kit shows equivalent performance with both the Maxwell® CSC and Maxwell® CSC 48 Instruments. Total nucleic acid extracted from sputum specimens (n=8) using either a Maxwell® CSC or Maxwell® CSC 48 Instrument showed comparable results in RT-qPCR targeting SARS-CoV-2.

Specifications

What's in the box?

Item Part # Size Available Separately

Maxwell® CSC Cartridge (CSCQ)

AS132B 48 × 1 each

CSC/RSC Plungers

AS133A 1 × 50/pk View Product

Elution Tubes (0.5ml)

AS620A 1 × 50/pk View Product

Lysis Buffer

MC110A 1 × 20ml

Proteinase K (PK) Solution

MC111A 2 × 1ml

Elution Buffer

MC112A 1 × 20ml

1-Thioglycerol

MC132A 1 × 900μl

Dilution Buffer (ST1)

MC153B 1 × 150ml

Certificate of Analysis

Search by lot number

Use Restrictions

For In Vitro Diagnostic Use. This product is only available in certain countries.
